Double Slide Table Plastic Vertical Injection Molding Machine Manufacturers

Name: Double Slide Table Plastic Vertical Injection Molding Machine Manufacturers
Brand: JINTONG
Price: 21000 USD

Brand Name : JINTONG

Model Number : JTT-850DM

Place of Origin : DONGGUAN

MOQ : 1

Price : USD21000--25000/PC

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50PCS/MONTH

Delivery Time : 35 days

Packaging Details : plywood case

Condition : New

After-sales service provided : Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support

Power(Kw) : 21.6

Automatic : yes, semi-auto

Certification : CE ISO

Plastic type : Termoplastic

Clamping force : 85T

Warranty : 1 year free spare parts, life-spen service

Keyword : double slide table, TPE/TPU

Contact Now

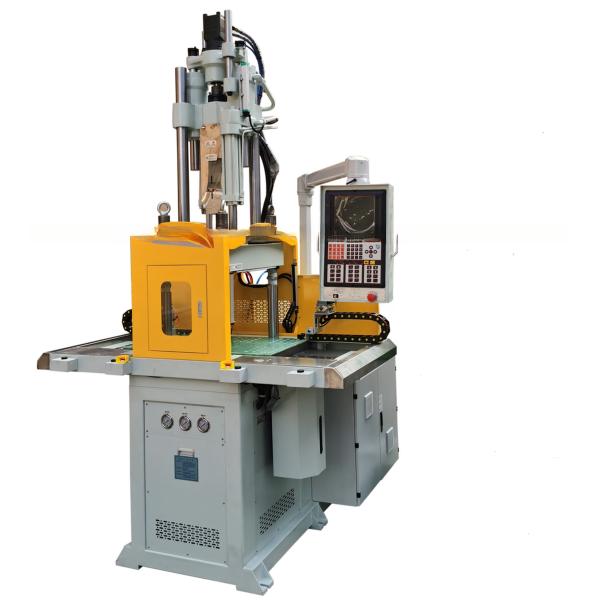

Plastic Vertical Injection Moulding/Molding Machine Double Slide Table JTT-850DM

Clamping Force: 85T

Injection Weight: 123-250g

Vertical clamping, vertical injection
DM—integrated double slide table(one up die and two low die)
LDM-split double slide table(one up die and two low die)
Double slide table to offer operation convenience and increase capacity
Optional saving energy motor
Fixed low die and movable up die to avoid insert part shift; oil hydraulic unit under low die to ejector finshed products; ejector speed and stroke adjusted by actual demand
Combined with conveyor system used on production line

	Model		JTT-850DM
injection system	Screw Diameter	mm	35 40 45 50
	Injection Pressure	kg/cm²	2171 1663 1314 1064
	Theoretical Shot Volume	cm³	183 238 302 373
	Injection Rate	cm3/sec	82 107 135 167
	Screw Stroke	mm	190
	Screw Speed	rpm	0-200
	Nozzle Contact Force	tons	2.9
	Nozzle Stroke	mm	220
	Number of Temperature Control	-	4
	Hopper Capacity	L	30
clamping system	Clamping Force	tons	85
	Opening Force	tons	10.5
	Platen Size	mm	740x500
	Distance Between Tie Bar	mm	560x320
	Min Mold Height	mm	250/200
	Opening Stroke	mm	250
	Max Open Daylight	mm	500/450
	Ejector Force	tons	3.3/3.5
	Ejector Stroke	mm	75/145
sliding system	Slide Stroke	mm	500
	Max Mold Weight	kg	200
	Station Clearance	mm	±0.02
oil pressure system	Max Hydraulic Pressure	kg/cm²	140
	Pump Output	L/min	76
	Oil Reservior Capacity	L	180
	Cooling Water Consumption	/hr	1200-1500
	Pump Moter Power	KW	11
	Barrel Heating Power	kw	5.6
	Total Power	kw	16.6
other	Machine Weight	tons	4.8
other	Machine Dimension	mm	1.82.363.01
